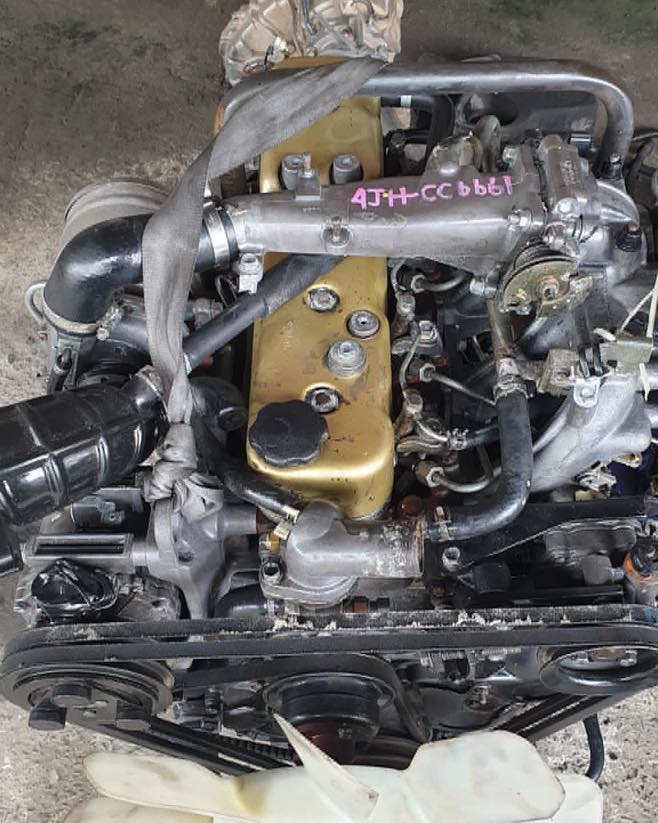

Isuzu 4JH1 engine Turbo charged

The Isuzu 4JH1 is a 3.0L turbocharged diesel engine, often denoted as the 4JH1-TC. It utilizes an intercooled turbocharger to boost its power and torque, providing enhanced efficiency and performance for light and medium-duty commercial vehicles and trucks, such as the Isuzu D-Max and Holden Rodeo.


How the Turbocharger Works
  • Exhaust Gas Energy:

    The engine’s exhaust gases spin a turbine.

  • Air Compression:

    This turbine drives a compressor that forces more air into the engine’s combustion chambers than would otherwise be possible.

  • Increased Power:

    The denser air allows for more fuel to be burned, resulting in increased horsepower, torque, and overall engine power.

  • Intercooler:

    A turbocharger often includes an intercooler, which cools the compressed air before it enters the engine, making the air even denser and further increasing power and efficiency.

Key Benefits
  • Increased Power Output:

    The turbocharger significantly boosts the engine’s horsepower and torque.

  • Improved Fuel Efficiency:

    By making the engine more efficient, the turbocharger helps to maintain good fuel economy despite the increased power.

  • Enhanced Performance:

    The extra power and torque are especially beneficial for heavy-duty applications, providing better pulling power.

  • Reliability:
    The 4JH1 is known for its robust build, and the turbocharging helps it deliver consistent, sustained performance.
The Isuzu 4JH1 turbo is a 3.0L, 4-cylinder, turbocharged, intercooled diesel engine with a displacement of 2999 cc. Specifications vary, but a common configuration produces around 120 hp (88 kW) at 3000 rpm and 181 lb-ft (245 Nm) of torque at 1800 rpm, utilizing direct injection and a durable timing chain.


General Engine Specifications

  • Engine Type: Inline 4-cylinder, turbocharged, intercooled diesel
  • Displacement: 3.0 L (2999 cc)
  • Bore: 94.5 mm (3.76 inches)
  • Stroke: 104.9 mm (4.13 inches)
  • Compression Ratio: Around 18.5:1
  • Fuel System: Direct injection
  • Cooling System: Water-based, with an intercooler
  • Timing System: Mechanical timing chain

Performance

  • Power Output: Approximately 88 kW (120 hp) at 3000 rpm
  • Maximum Torque: Approximately 245 Nm (181 lb-ft) at 1800 rpm
Key Features
  • Robust Design:

    Features a cast-iron block for strength and durability, paired with an aluminum alloy cylinder head.

  • Turbocharger:

    Enhances power output and fuel efficiency, with some variants including an intercooler and EGR cooler.

  • Timing Chain:

    A durable timing chain is used instead of a belt, which extends service intervals and improves reliability.

  • Piston Design:
    Specialized combustion chambers in the pistons are designed for improved fuel economy.
