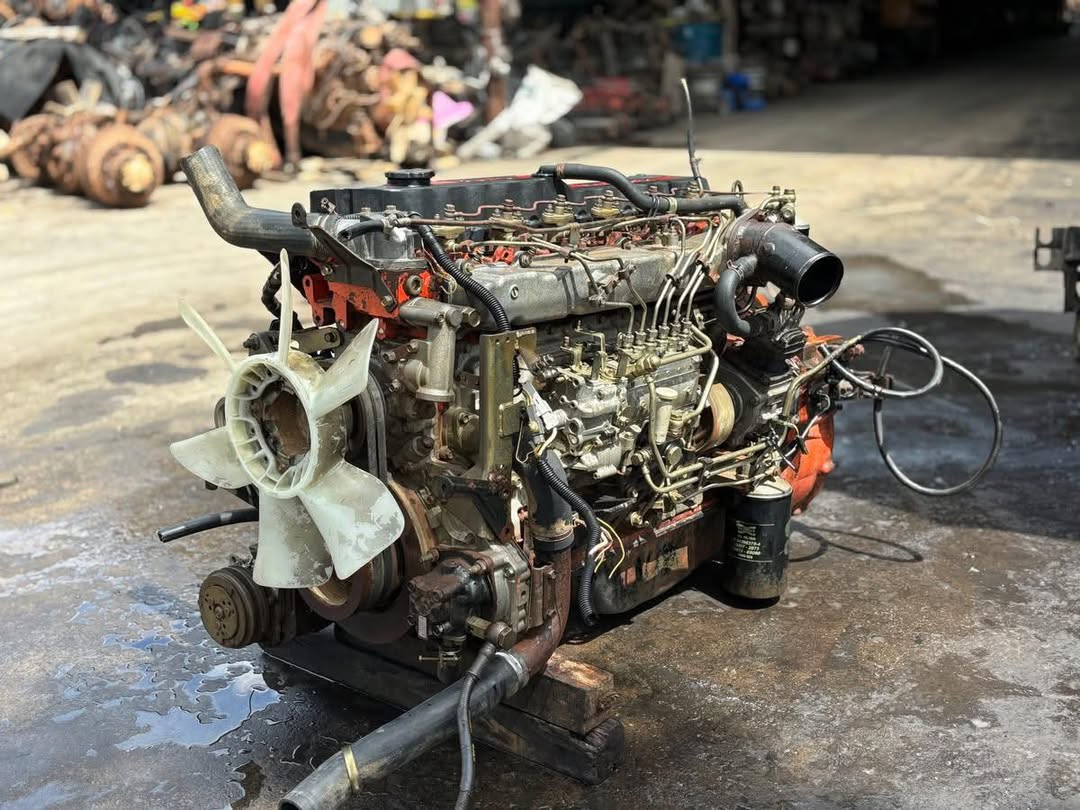

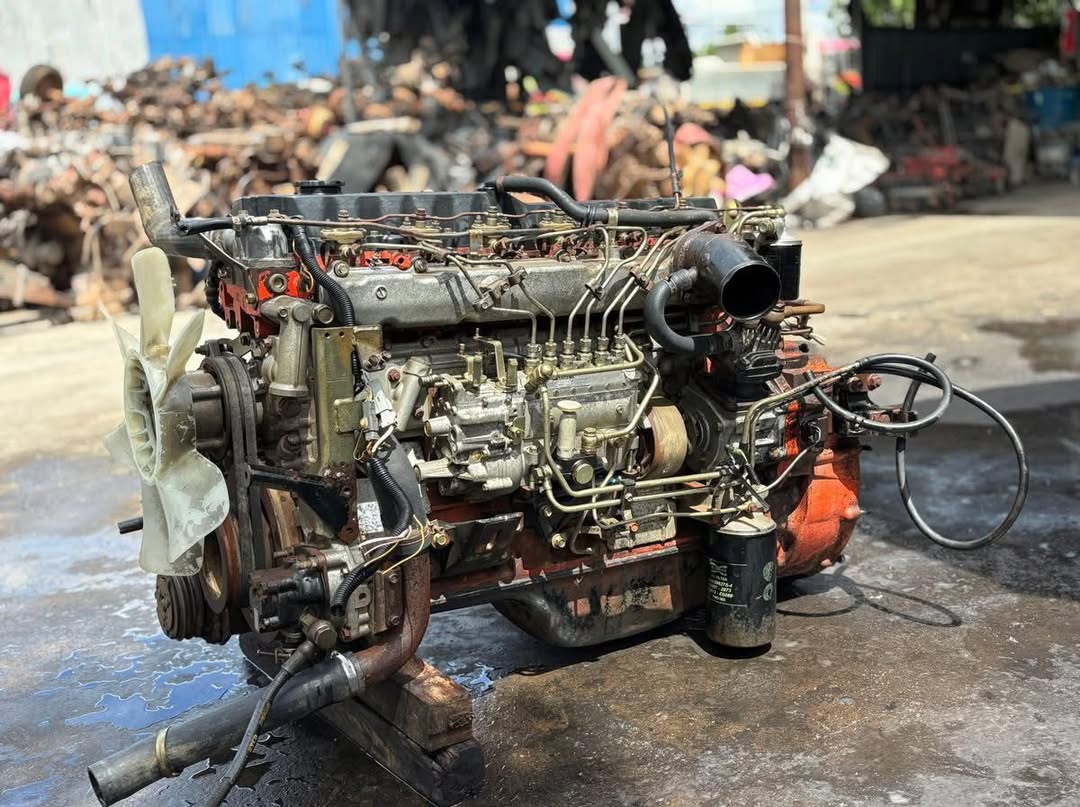

The Isuzu 6HE1 is a 6-cylinder inline diesel engine with a displacement of either 7.1 liters (7127 cc) or, in some variants, 8.2 liters (8226 cc). It is a liquid-cooled engine, typically featuring direct injection and a SOHC valvetrain (12-valve or 24-valve depending on the variant). Power output ranges from approximately 165 to 260 hp (123–194 kW) and torque from 330 to 560 lb-ft (46–77 kgâ‹…m), varying by model and whether it’s naturally aspirated or turbocharged.Â
Key Specifications of the Isuzu 6HE1:
- Engine Type:Â Inline 6-cylinder diesel.Â
- Displacement:Â Primarily 7.1 L (7127 cc), with some variants at 8.2 L (8226 cc).Â
- Bore and Stroke: 110 mm × 125 mm (for 7.1L) and 115 mm × 132 mm (for 8.2L).Â
- Cooling System:Â Liquid-cooled, often with an external oil cooler.Â
- Aspiration:Â Naturally aspirated or turbocharged (including intercooled variants).Â
- Valvetrain:Â Direct injection, SOHC (12-valve or 24-valve).Â
- Compression Ratio:Â Typically 16.9:1 or 18.5:1, depending on the variant.Â
- Injection System:Â Direct injection, with some older variants using a reformed Bosch inline injection pump.Â
- Power Output: 165–260 hp (123–194 kW).Â
- Torque: 330–560 lbâ‹…ft (46–77 kgâ‹…m).Â
- Applications:Â Commonly found in Isuzu Forward trucks and other medium-duty vehicles.Â
