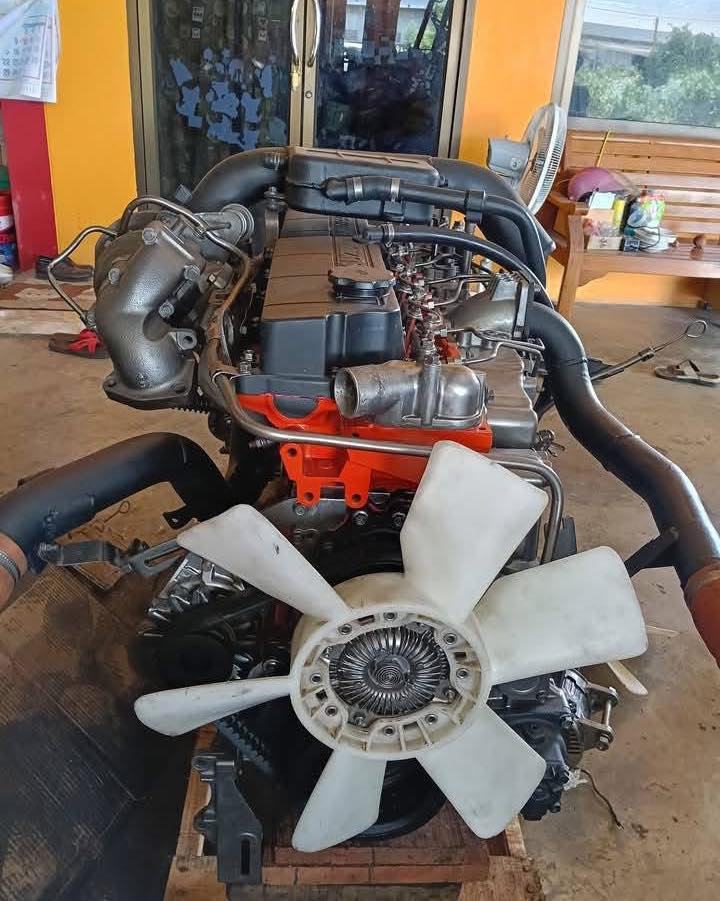

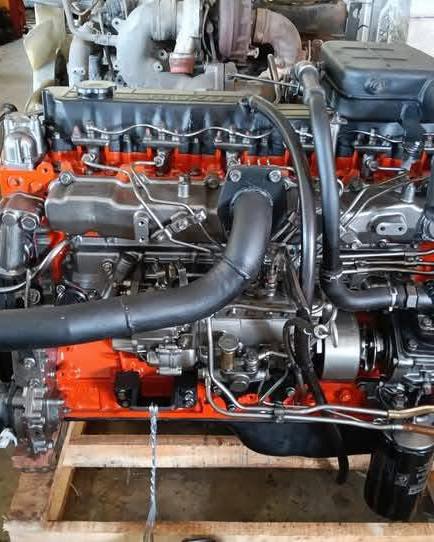

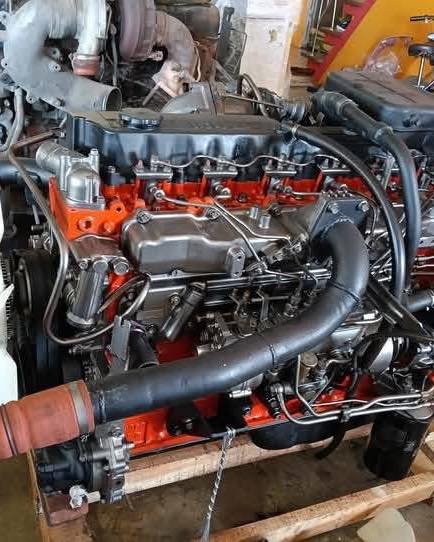

The Isuzu 6HE1 engine is a 6-cylinder, inline diesel engine with a displacement of 7.1 liters (7,127 cc). It is available in both naturally aspirated and turbocharged versions, with the turbocharged variant offering higher power and torque output. The 6HE1-T (turbocharged) engine typically produces between 165-260 horsepower and 330-560 lb-ft of torque.
Detailed Specifications:
- Type: Inline 6-cylinder, diesel.
- Displacement: 7.1 liters (7,127 cc).
- Bore and Stroke: 110 mm x 125 mm.
- Aspiration: Naturally aspirated or turbocharged.
- Valvetrain: Direct injection, SOHC, 12-valve.
- Fuel Injection: Direct injection.
- Power: 165-260 horsepower (123-194 kW).
- Torque: 330-560 lb-ft (46-77 kg-m).
- Compression Ratio: 16.9:1 (approximate).
- Cooling: Water-cooled.

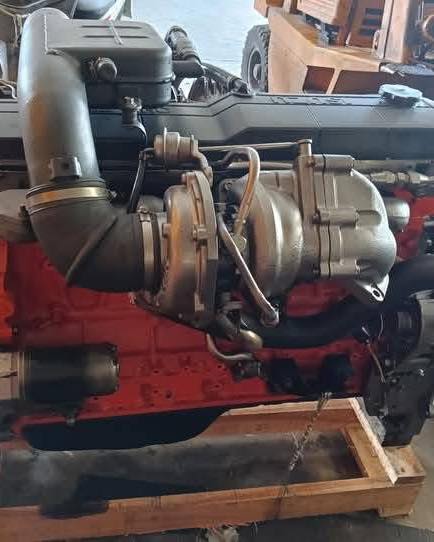

- Turbocharger: Single unit with intercooler (on turbocharged models).
- Emissions Control: Cooled EGR + PCV system.
- Engine Oil Capacity: 12-14 liters.
- Recommended Oil Viscosity: 10-30.
Turbocharged Variants:
- 6HE1-T: Turbocharged.
- 6HE1-TCS: Turbocharged and intercooled.
Applications:
The 6HE1 engine is commonly found in Isuzu Forward trucks and other medium-duty commercial vehicles. The turbocharged versions are particularly well-suited for applications requiring higher power output and better performance at higher altitudes
