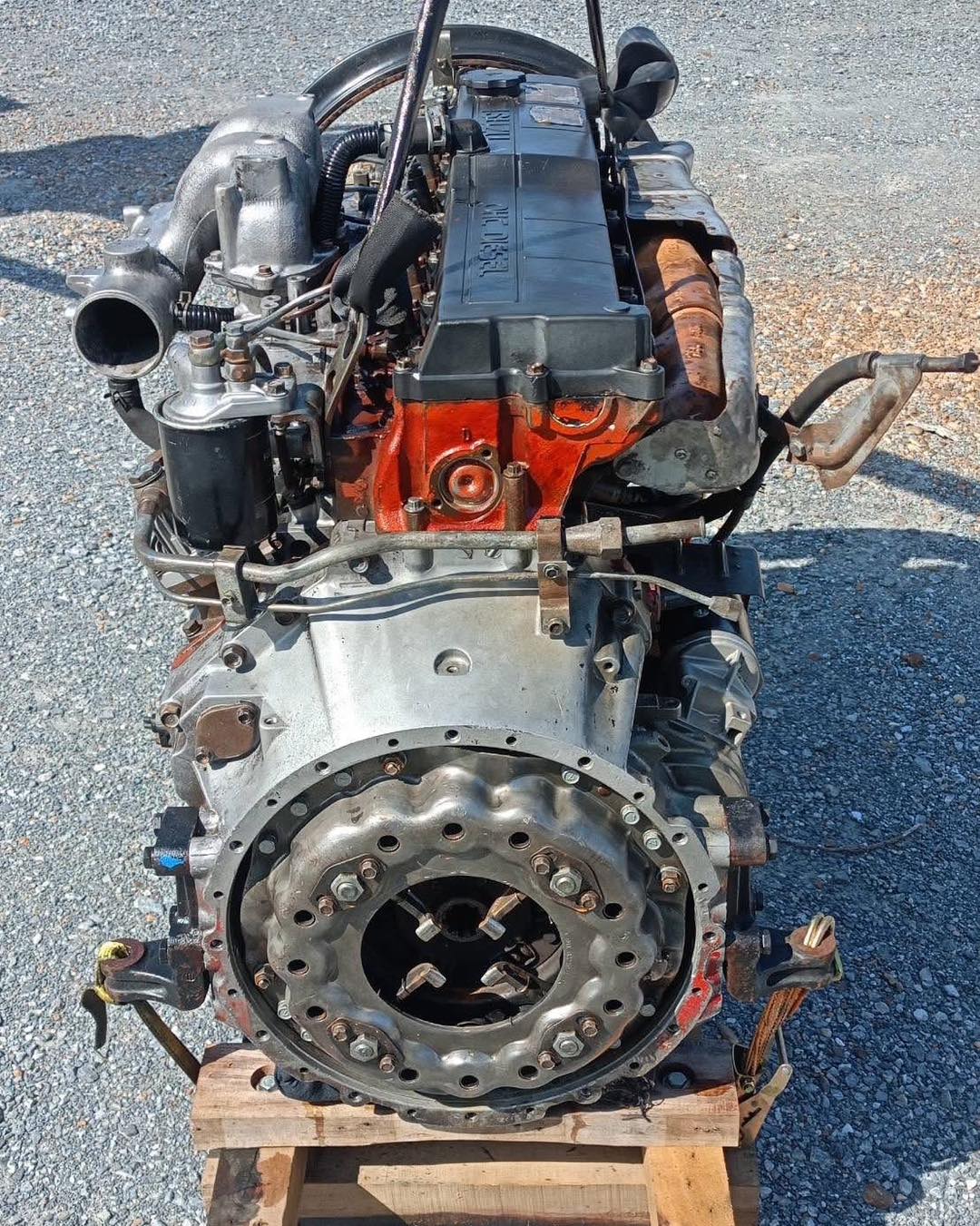

Isuzu 6HH1 210 hp

The Isuzu 6HH1 engine, with a 210 horsepower rating, is a robust 8.2-liter, inline-six diesel engine known for its durability and performance in various commercial vehicles, particularly Isuzu Forward trucks. It features a naturally aspirated configuration, a SOHC 24-valve valvetrain, and a direct injection system. The 6HH1 delivers a power output between 173-200 hp and torque ranging from 340-370 lb-ft.

Here’s a more detailed breakdown:

General Specifications:

Engine Type: Inline-six, naturally aspirated diesel.
Displacement: 8.226 liters (8,226 cc).
Bore and Stroke: 115 mm x 132 mm (4.5 in x 5.2 in).
Valvetrain: SOHC 24-valve.
Compression Ratio: 18.5:1.
Injection: Direct injection, with a reformed Bosch inline injection pump, automatic timer, and all-speed mechanical governor.
Power Output: 173-200 hp (129-149 kW).
Torque Output: 340-370 lb-ft (46-51 kg-m).

Key Features:

Durability: The 6HH1 is known for its robust and durable design, suitable for heavy-duty applications and long hours of operation.
Fuel Efficiency: Compared to similar class trucks, the 6HH1 is considered fuel-efficient.
Performance: The engine delivers consistent performance, especially under high-load conditions.
Applications: It is commonly found in Isuzu Forward trucks and other commercial vehicles.
Maintenance: Requires regular maintenance for optimal performance.
