This is the manufacturer of the engine, known for its 400 Series of compact industrial diesel engines.
This is the specific Perkins model number, indicating a four-cylinder (404), direct-injection (D), 2.2-liter engine (22) with a turbocharger (T).
These are alternative names for the same engine, sometimes used by other manufacturers or in specific applications.
Delivers around 60 HP (44.7 kW) and a robust performance for its compact size.
A 2.2-liter, four-stroke, four-cylinder, turbocharged diesel engine.
Widely used in various industrial, agricultural, and construction machinery, including skid steers, mini excavators, wheel loaders, and utility vehicles.

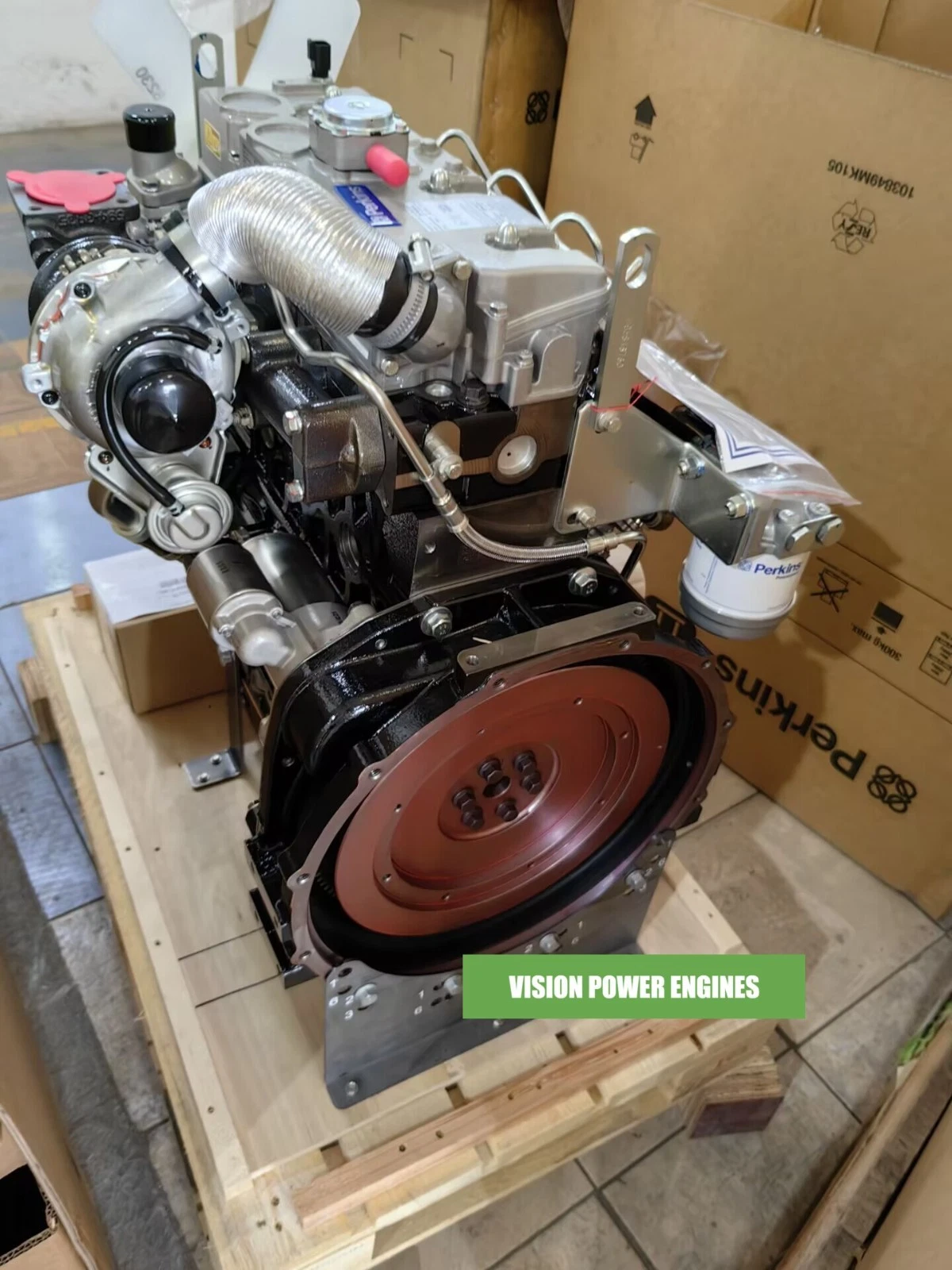

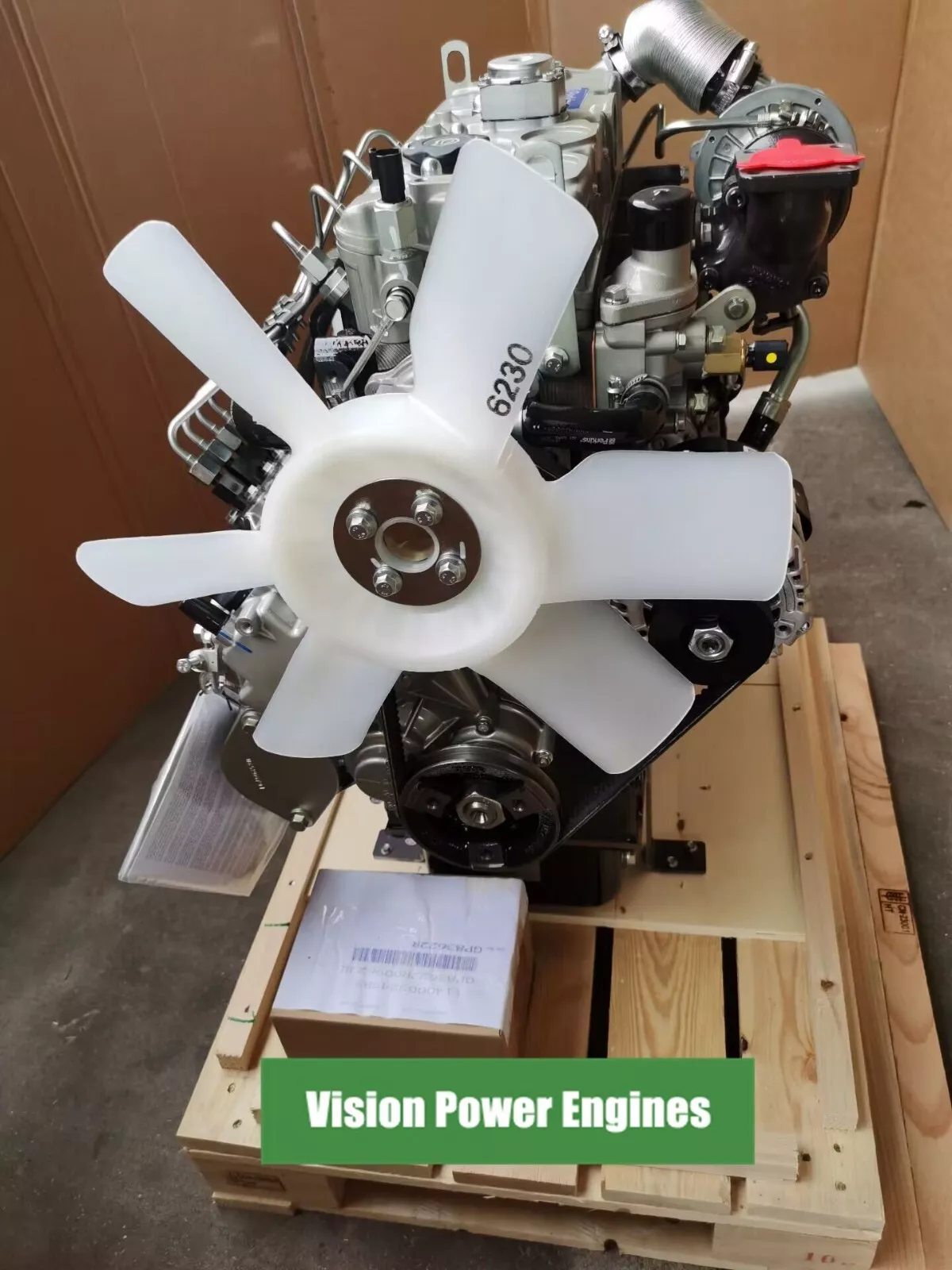

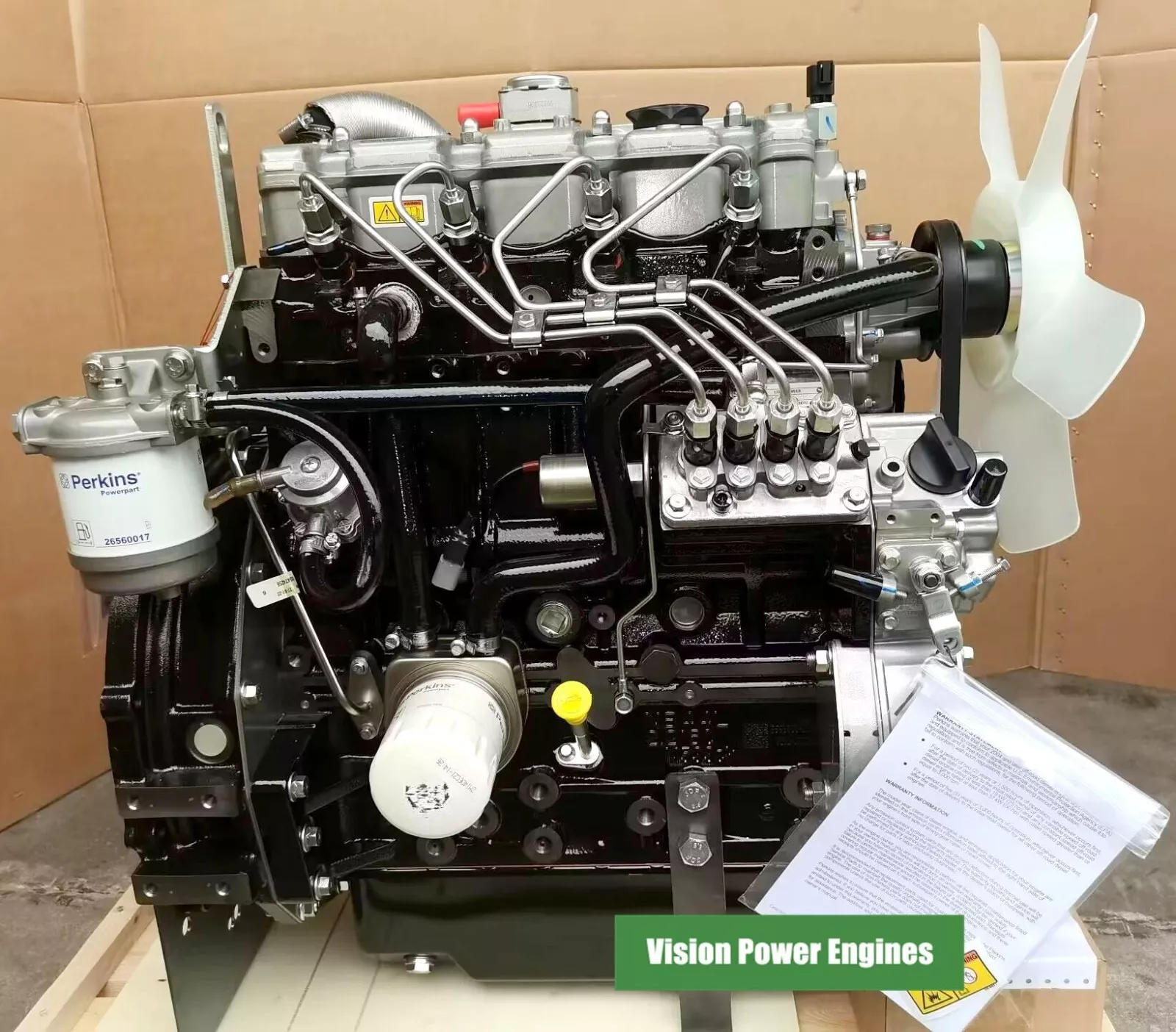

The Perkins 404D-22T is a >61 hp (45.5 kW) turbocharged 2.2-liter, 4-cylinder engine with a 189.1 Nm maximum torque, designed for various industrial applications. This model is similar to or a predecessor of the Caterpillar 3024C and C2.2T engines, and its specifications are detailed in the table below.
|
Feature
|
Specification
|
|---|---|
|
Engine Model
|
404D-22T
|
|
Displacement
|
2.2 L (135 in³)
|
|
Aspiration
|
Turbocharged
|
|
Cylinders
|
4 inline
|
|
Bore
|
84 mm (3.3 in)
|
|
Stroke
|
100 mm (3.9 in)
|
|
Compression Ratio
|
23.3:1
|
|
Max Power
|
61 hp (45.5 kW)
|
|
Rated Speed
|
2600-3000 rpm
|
|
Max Torque
|
189.1 Nm (139.5 lb-ft) @ 1800 rpm
|
|
Combustion System
|
Indirect injection (IDI)
|
|
Cooling
|
Liquid-cooled
|
|
Emission Standard
|
EU Stage IIIA/U.S. EPA Tier 4 Interim equivalent
|
|
Weight
|
194 kg
|
This engine is designed for industrial applications, often used in diesel generators and other machinery.
The 404D-22T combines high performance, low running costs, and a compact package.
The Perkins 404D-22T is often considered the same or equivalent to the Caterpillar 3024C and C2.2T engine models, as seen in various listings and seller information.
The engine is built with robust construction and superior components to ensure long-lasting performance.
. Perkins is the brand, while 404D-22T, C2.2T, 3024C, and N844LT are specific designations for this compact, fuel-efficient engine used in various off-highway equipment like excavators, loaders, and utility vehicles. Understanding […]){kind=link}
