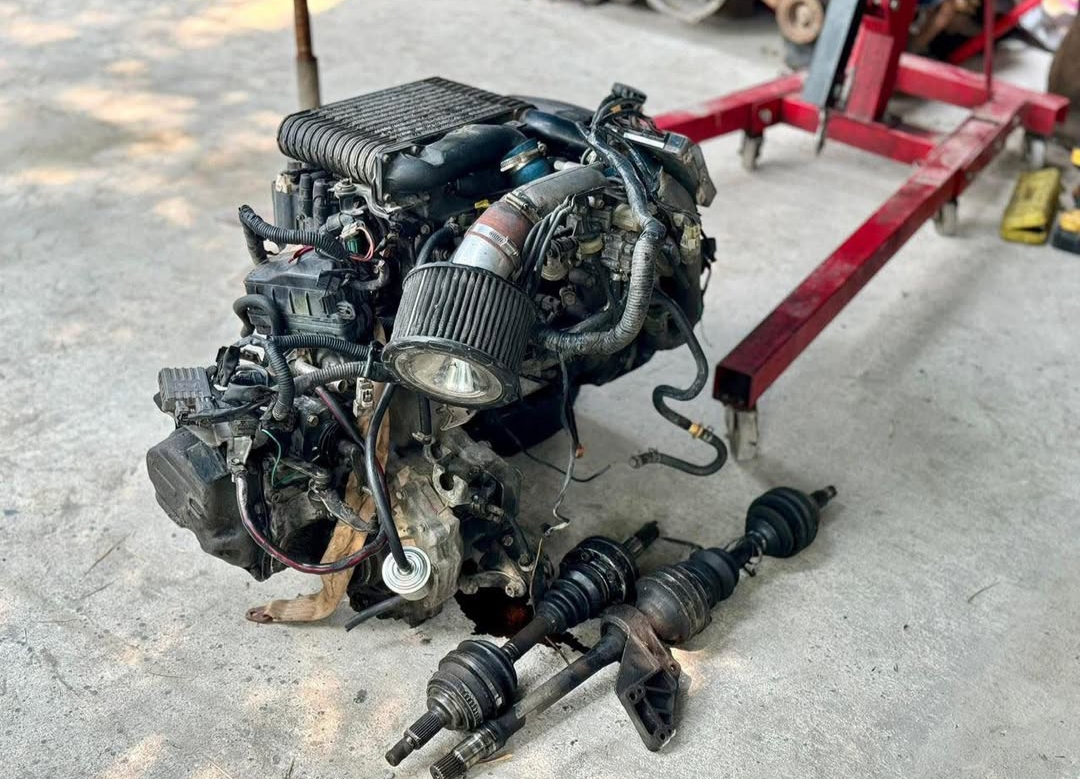

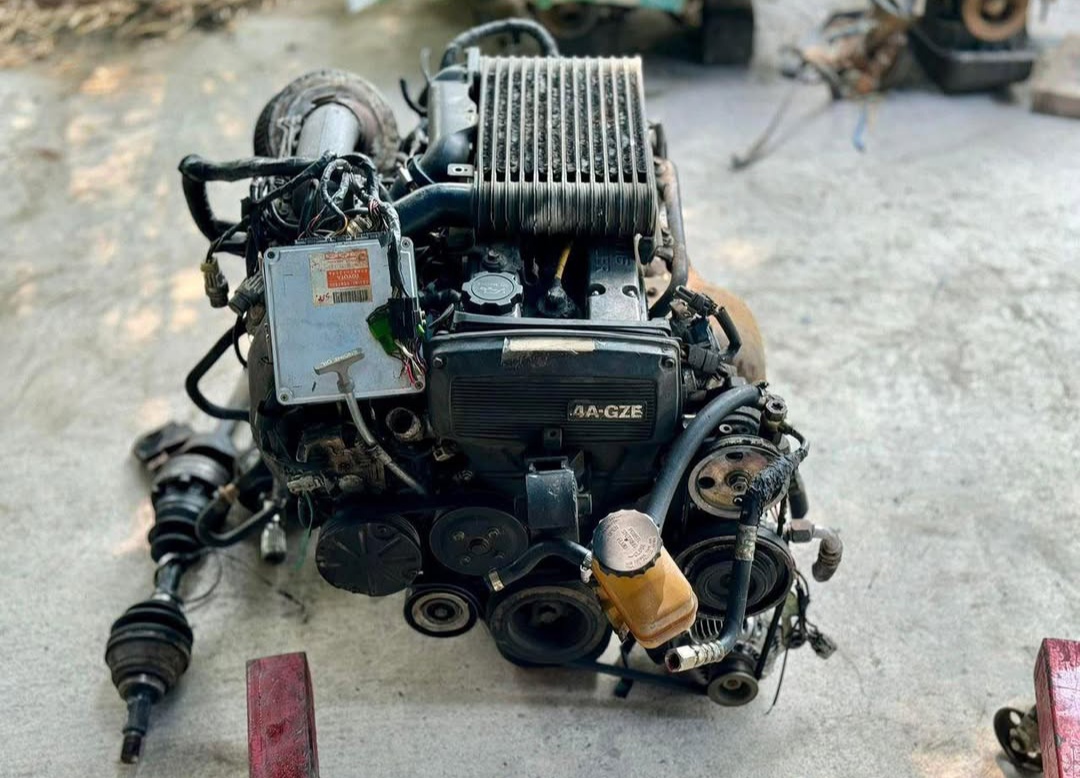

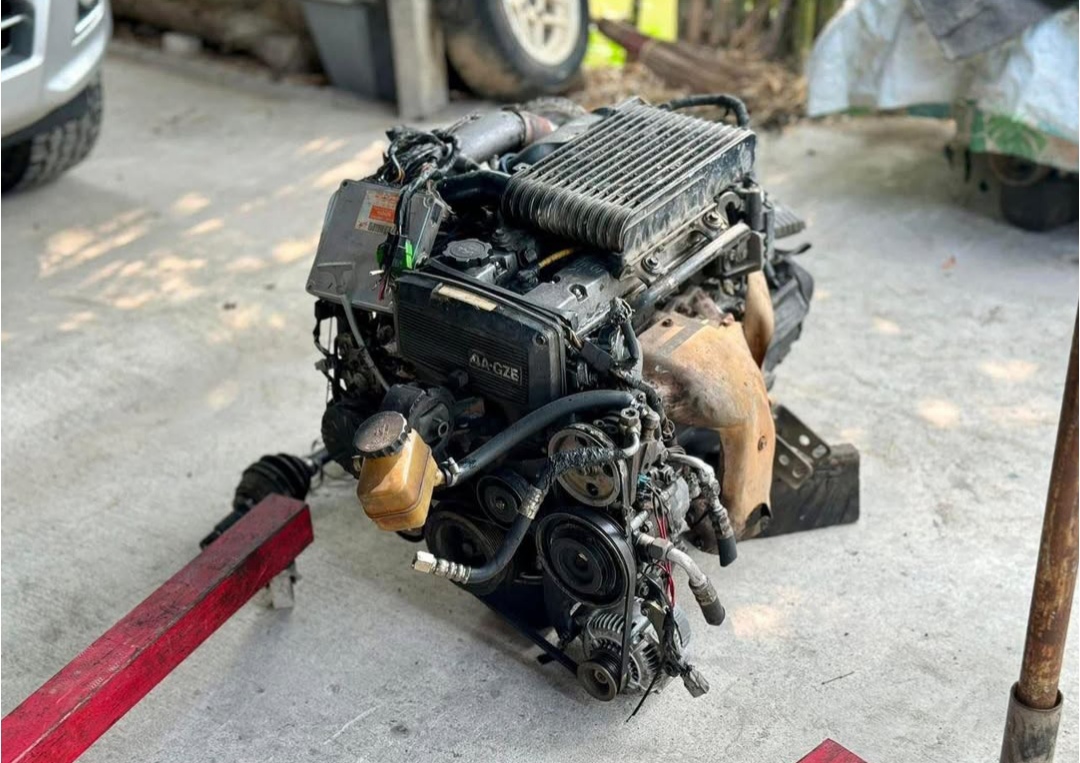

The Toyota 4A-GZE is a performance-oriented,1.6-liter, supercharged, DOHC inline-four engine from Toyota’s A-series engine family, based on the naturally aspirated 4A-GE engine. It was famously used in the first-generation Toyota MR2 from 1987-1989 and featured stronger internal components than the base 4A-GE, an electric magnetic clutch supercharger, and an intercooler. The engine is known for its excellent performance for its size and is a popular choice for engine swaps and performance modifications, though it has relatively poor low-end torque.
Key Characteristics
Engine Type:1.6-liter, inline-four, DOHC.
Aspiration:Supercharged.
Internals:Features stronger components than the naturally aspirated 4A-GE to handle the added stress of forced induction.
Supercharger:Equipped with a supercharger with an electric magnetic clutch that engages at specific RPMs to provide a boost.
Intercooler:Includes an intercooler to cool the compressed air before it enters the engine.
Common Applications & Popularity
Vehicle Fitment:The 4A-GZE was factory-installed in the first-generation Toyota MR2 (AW11).
Engine Swap:It is a common engine swap in vehicles like the Toyota Corolla AE86.
Performance:It’s a popular platform for tuners due to its compact size and high-revving nature, though it requires significant modifications to achieve high horsepower levels.
Compared to other 4A-GE variants
Lower Power Output (vs. 20-valve):
The supercharged 4A-GZE produced around 145 horsepower, which is less than later 20-valve 4A-GE engines.
Stronger Internals (vs. naturally aspirated):
While the 4A-GE was available in 16-valve and 20-valve versions, the GZE variant included reinforced internals and forced induction for better power and reliability.
The Toyota 4A-GZE is a 1.6-liter, DOHC, 16-valve inline-4 engine that was produced in two main generations between 1986 and 1995. Both generations were equipped with a factory-fitted roots-type supercharger and a strong 7-rib cast-iron block.
General specifications
Production years: 1986–1995
Configuration: Inline-4
Displacement: 1,587 cc (1.6 L)
Cylinder bore: 81.0 mm (3.19 in)
Piston stroke: 77.0 mm (3.03 in)
Cylinder block: 7-rib cast iron
Cylinder head: Aluminum with dual overhead camshafts (DOHC) and 16 valves
Valvetrain: Timing belt driven
Intake system: Roots-type SC12 supercharger
Pistons: Forged and ceramic-coated (some variations)
TOYOTA 4-AGZE | Character & Cars Fanon Wiki – Fandom
TOYOTA 4-AGZE * Configuration. Inline 4. * Engine capacity. 1587cc. * Torque. 6400 rpm. * Horsepower. +/- 165. … First Generation. The first generation 4A-GZE…
4agze compression ratio ?
Mar 4, 2013 — 4agze compression ratio ? * wogrocket said: 03-03-2013 01:51 PM. 4agze compression ratio ? Pretty new with the 4agze but I’ve recently finished putting one in m..
First generation (1986–1989)
The first 4A-GZE was released in the supercharged AW11 MR2 and the early AE92 Corolla.
Power output: 145 PS (143 hp) at 6,400 rpm
Torque output: 190 N⋅m (140 lb-ft) at 4,400 rpm
Compression ratio: 8.0:1
Supercharger boost: 8 psi (0.55 bar)
Fuel metering: Air Flow Meter (AFM)
Notable features:
No oil squirters
Distributor ignition (MR2) or distributor-less ignition with twin coil packs (Corolla)
Big port cylinder head, no T-VIS
Second generation (1990–1995)
The revised 4A-GZE appeared in later AE92 and AE101 Corollas, featuring several key upgrades.
Power output: 165–170 PS (163–168 hp) at 6,400 rpm (depending on application)
Torque output: 206–210 N⋅m (152–155 lb-ft) at 4,400 rpm
Compression ratio: 8.9:1
Supercharger boost: 10 psi (0.69 bar) via a smaller pulley
Some AE101 models also came with a dual muffler exhaust
AI responses may include mistakes. Learn more
4AGZE Specs – Club4AG
4A-GZE Specifications OEM. 4A-GZEU. 4A-GZEU. 4A-GZEU. Applications. AE92 Japan 88-90, AW11. AE92 Japan 90-91. AE101 Japan 92-95. General. DOHC Belt. DOHC Belt. …
Club4AG
Cars using the engine 4a-gze
Engine 4a-gze. Overview: Company : Toyota production years : 1986-1995 displacement (cc) : 1587 fuel system : distributed injection power (hp) : 145 (1 Gen. 198…
