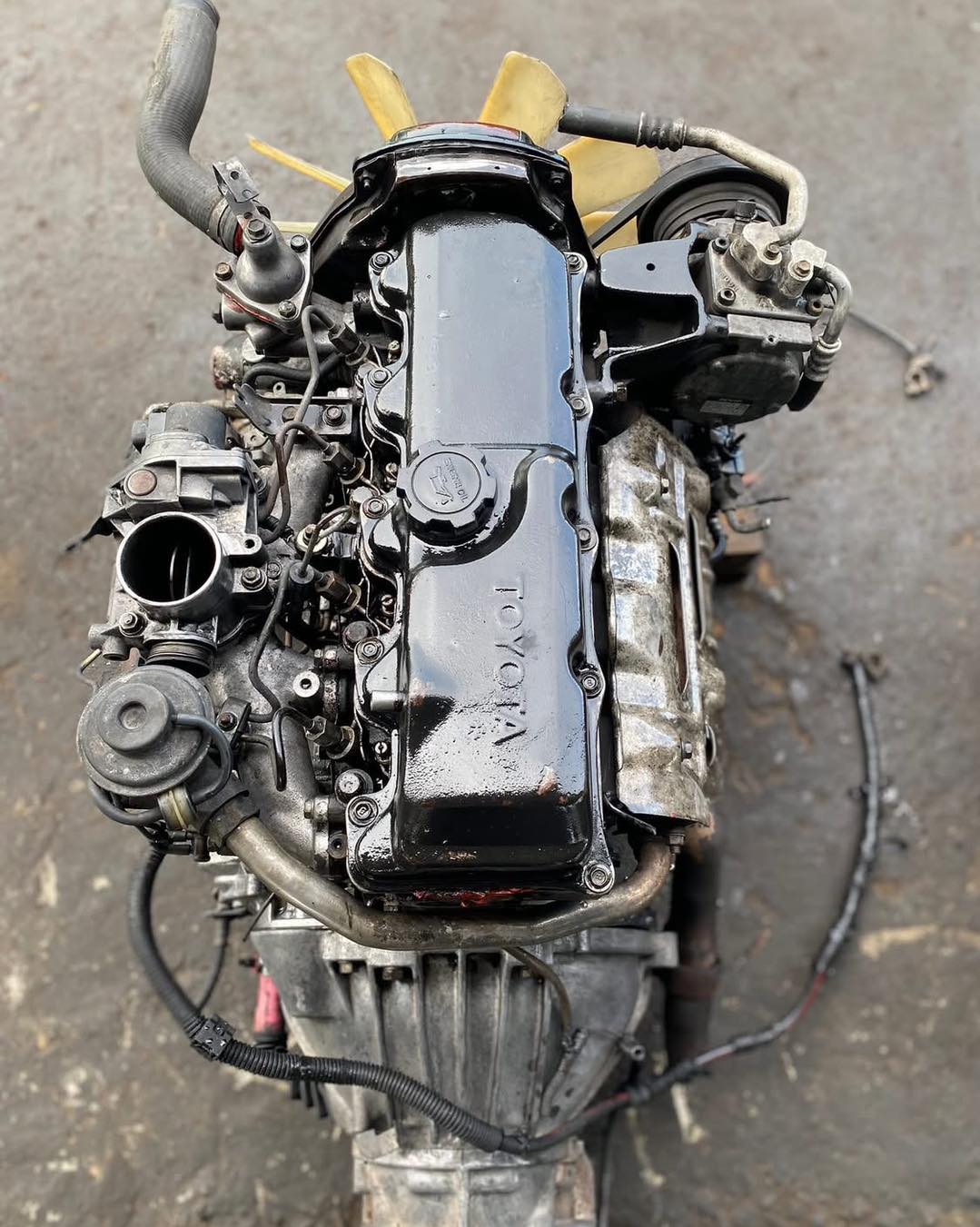

Toyota 5L engine for Hilux 3.0 Diesel

The Toyota 5L is a 3.0L (2986cc) four-cylinder diesel engine commonly found in Toyota HiLux and HiAce vehicles. It features a bore and stroke of 99.5 mm x 96 mm and a compression ratio of 22.3:1. The engine produces approximately 75 kW (101 hp) at 4,200 rpm and 240 Nm of torque at 2,400 rpm, making it suitable for low-speed pulling power.


Key Specifications:
  • Engine Model: 5L.
  • Displacement: 2986 cc.
  • Cylinders: 4.
  • Bore x Stroke: 99.5 mm x 96 mm.
  • Compression Ratio: 22.3:1.
  • Firing Order: 1-3-4-2.
  • Idle Speed: 750 – 850 rpm.
  • Oil Capacity: 6.5 liters (Grade CD/E/F).
  • Power Output: 75 kW (101 hp) at 4,200 rpm.
  • Torque Output: 240 Nm at 2,400 rpm.
  • Valve Clearances (Cold): Intake: 0.20 – 0.30 mm; Exhaust: 0.40 – 0.50 mm.
  • Torque Specifications: Head Bolt: 78 nm + 90 Deg + 90 Deg; Conrod Bolt: 54 nm + 90 Deg; Main Bolt: 103 nm; Flywheel: 123 nm; Harmonic Bal: 235 nm.
